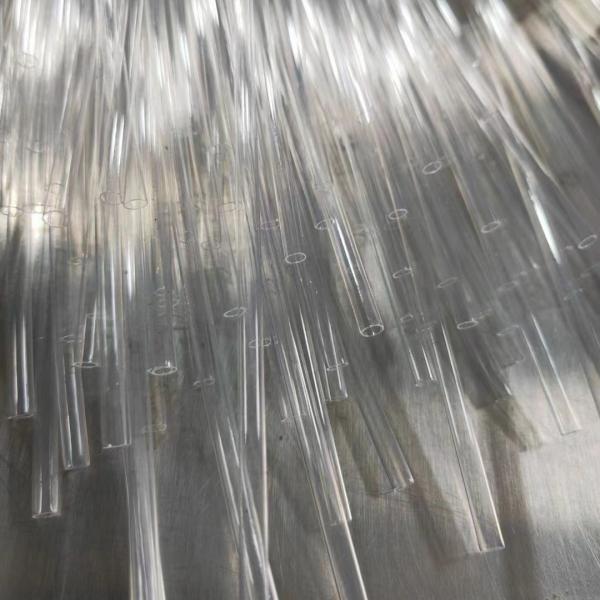

FEP Heat Shrink Tube Medical Heat Shrink Tubing Shrink Ratio 1.6: 1
FEP heat shrink tubing has similar dielectric and frictional
properties to PTFE heat shrink tubing. Except the Continuous
operating temperature, FEP heat shrinkable tubing is suitable for
continuous use at temperatures up to 200°C. But the begin shrink
temperature of FEP tubing is just 130 °C, much lower than PTFE’s.
This can be a significant advantage when used in conjunction with
temperature sensitive components. The other advantage of FEP heat
shrink tubing is that the max diameter of FEP heat shrink tubing we
can produce is 215mm ID, much larger than PTFE’s.
Shrink Ratio:1.6:1
Characteristics:excellent 200℃ high-temperature performance,
chemical resistance, high insulation and excellent mechnical
properties. Excellent abration resistance and excellent clarity.
RoHS and REACH compliant.
Properties
| Property | Typical Performance |
| Density | 2.12-2.17 g/cc |
| hardness shore D | 55 D-65D |
| Tensile Strength(Mpa) | 19-22 Mpa |
| Elongation(%) | 300-400% |
| flammability | VW-0 |
| water absorption | ≤ 0.01% |
| thermal conductivity | 0.2 W/m-k |
| dielectric constant | 25-30kv/mm |
| Max work temperature | -60 to 200°C
|
Features and Benefits
1. Excellent insulation
2. Operating temperature -180°C ~ 200 °C
3. No burn in the air (Oxygen Index>95vol%)
4. Excellent corrosion resistance
5. Low Friction: Dynamic friction coefficient 0.2-0.3
6. UV resistance
7. Large diameter up to 215mm.
8. Customize ( diameter, wall thickness, and color)
9. Shrink ratio: 1.6:1
10. Lower shrink temperature 130 degree C to start shrink
11. Low pass for 5G using
Production process
We use new and pure raw material to produce our FEP heat shrink
tubing, our raw material from Dakai, Dupond, Dongyue and Juhua. We
donn;t use recycle material. So we just make high quality product.
We have infra-ray diameter gauge to measure the diameter to confirm
the diameter suit the tolerance.
Bakai has our own clean room, we can producing product in the clean
room for medical use.
Application:
Widely used in office machinery, paper machinery, printing
machinery, printing presses, insulated jacket, UV lamp.
Specification:
ID pre-shrink | OD(MM)
post-shrink |
wall thickness post-shrink
|
length |
| 1 | 0.8 | 0.15-0.2 | 10 |
| 1.5 | 1.2 | 0.15-0.2 | 10 |
| 2.0 | 1.6 | 0.15-0.2 | 10 |
| 3.0 | 2.2 | 0.15-0.2 | 10 |
| 4.0 | 3.0 | 0.2-0.25 | 10 |
| 4.5 | 3.3 | 0.2-0.25 | 10 |
| 5.5 | 4.3 | 0.2-0.25 | 10 |
| 7.0 | 5.1 | 0.2-0.35 | 10 |
| 8 | 6.0 | 0.2-0.35 | 10 |
| 10 | 7.4 | 0.2-0.45 | 10 |
| 12 | 8.8 | 0.2-0.45 | 10 |
| 14 | 10.7 | 0.2-0.45 | 10 |
| 19 | 16.5 | 0.2-0.45 | 10 |
| 24 | 19.5 | 0.2-0.45 | 10 |
| 30 | 24 | 0.2-0.45 | 10 |
| 33 | 27 | 0.2-0.45 | 10 |
| 35 | 28 | As you need | As you need |
| 40 | 31 |
| 45 | 35 |
| 50 | 39 |
| 55 | 43 |
| 60 | 46 |
| 70 | 54 |
| 75 | 58 |
| 80 | 62 |
| 90 | 70 |
| 100 | 75 |
| 150 | 120 |
| 215 | 180 |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex,
UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train.
We will use good packing and ensure the safety. We will be
responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock
products in 3 work days.
If without stock,or stock is not enough, we will check the delivery
time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples
free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have
over 10 years OEM experience.
