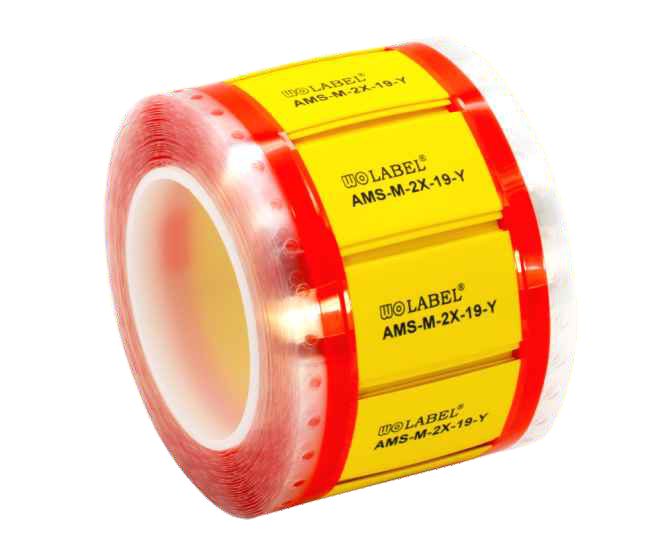

Yellow PUR Indentification Tags Heat Shrink Cable Markers Of PE
Description: The PUR cable markers are made of a thermoplastic polyurethane
material, which is a halogen free, flame retardant, hydrolysis and
micro organism resistant material. The raw material fulfills
UL94-V0. For identification of cables and wires, the markers are
supplied on rolls for thermal transfer print.
Use : Markers can be easily removed from the carrier, and applied to
cables and wire bundles using cable dies. Thermal transfer printer
and WO-80500BK ribbon are recommended for meeting printing
performance requirements of SAE AS 81531 and MIL-STD-202F.
Physic Performance
| Properties | Test Method | Typical value |
| Hardness | DIN 53505 | 58 Shore D |
| Density | DIN 53475 | 1.27g/cm3 |
| Tensile strength | DIN 53504 | 30MPa |
| Ultimate elongation | DIN 53504 | 400% |
| Stress at 20% elongation | DIN 53504 | 13MPa |
| Stress at 100% elongation | DIN 53504 | 19MPa |
| Stress at 300% elongation | DIN 53504 | 33MPa |
| Tear Strength | DIN 53515 | 110N/mm |
| Abrasion Loss | DIN 53516 | 30 mm3 |
| Compression set at room temperature | DIN EN ISO 815 | 30% |
| Compression set at 70°C | DIN EN ISO815 | 45% |
| Notched impact strength (Charpy) +23°C | DIN EN ISO 179 | 50 kj/m2 |
Specification and size
| Order Code | Color | Pack size (pcs/coil) | Marker high (mm) | Marker length (mm) |
| PUR-M-4H-10-60-1K-W | White | 1000 | 10 | 60 |
| PUR-M-4H-15-75-1 K-W | White | 1000 | 15 | 75 |
| PUR-M-4H-25-75-0.5K-W | White | 500 | 25 | 75 |
| PUR-M-4H-10-60-1K-BL | Black | 1000 | 10 | 60 |
| PUR-M-4H-15-75-1 K-BL | Black | 1000 | 15 | 75 |
| PUR-M-4H-25-75-0.5K-BL | Black | 500 | 25 | 75 |
| PUR-M-4H-10-60-1K-Y | Yellow | 1000 | 10 | 60 |
| PUR-M-4H-15-75-1K-Y | Yellow | 1000 | 15 | 75 |
| PUR-M-4H-25-75-0.5K-Y | Yellow | 500 | 25 | 75 |
| PUR-M-4H-10-60-1K-R | Red | 1000 | 10 | 60 |
| PUR-M-4H-15-75-1K-R | Red | 1000 | 15 | 75 |
| PUR-M-4H-25-75-0.5K-R | Red | 500 | 25 | 75 |
FAQ
Professional Production Quality is Reliable
Q1 . Which certifications or test reports do you have?
A : We have UL,ROHS and REACH.
Q2 . How to ship my order? Is it safe?
A : For small package, we will send it by Express,such as Fedex,
UPS,TNT, DHL and so on.
For big packages, we will send them by Air or By sea or by Train.
We will use good packing and ensure the safety. We will be
responsible to any product damage caused on delivery.”
Q3 . What about your delivery time?
A : We have a lot of products in stock. We can send the stock
products in 3 work days.
If without stock,or stock is not enough, we will check the delivery
time with you.” (Usually is 3-7days).
Q4 . Can you provide samples? Are the samples free?
A : Yes. We can provide samples.
Usually for our standard products with stock, we can supply samples
free for testing.
Q5 . Could I put my own logo on it?
A : Sure, of course, we are a professional manufacture and have
over 10 years OEM experience.
