    30mm Waterproof Yellow Heat Shrink Tubing , 1kv Insulation Sleeving Electrical Heat Shrinkable

    1KV 30mm Yellow Heat Shrink Busbar Tube Waterproof Insulating Tube


    Heat Shrink Busbar Tube


    Features


    • Manufactured from cross-linked polyolefin

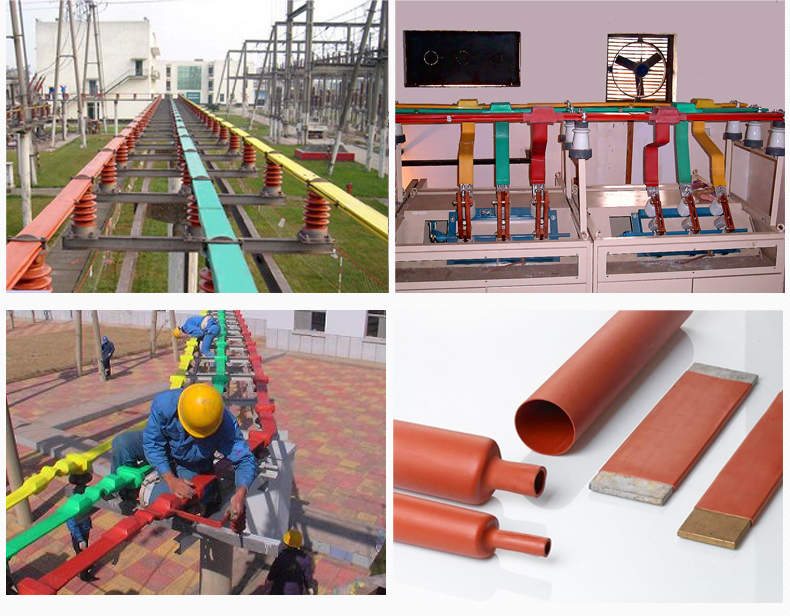

    • Used to offer insulation protection for busbar in switchgear and substation


    • Protects against short circuit and electrical leakage cause by small animals


    • Reduces busbar clearance requirements


    RoHS compliant

    Shrink temperature: start at 70X5. and fully recovered at 125X5


    • Color: yellow, red, green, blue, black


    Dimensions


    Busbar WidthAs Supplied/mmAfter Recovered/mmStandard Package
    1 1 UU U 11 Vi(square)/mmID (Min)Wall ThicknessID (Max)Wall Thickness(m/roll)
    IkVWMPG 303031.5±1.00.50±0.15♦ 150.95±0.1550
    IkVWMPG 353536.5±1.50.50±0.15<181.00±0.1550
    IkVWMPG 404041.511.50.55±0.15W201.00±0.1525
    IkVWMPG 454541.5±1.50.55±0.15W231.00±0.1525
    IkVWMPG 505051.0±2.00.55±0.15♦ 251.00±0.1525
    IkVWMPG 606060.0±3.00.60±0.20<301.30±0.2025
    IkVWMPG 65*6565.0±3.00.60+0.20W331.30±0.2025
    IkVWMPG 707070.0±3.00.65±0.20W351.30±0.2025
    IkVWMPG 75*7575.0±3.00.65±0.20W381.30±0.2025
    IkVWMPG 8080/10080.013.00.65±0.20W401.46±0.2025
    IkVWMPG 85*80/10085.0±3.00.65±0.20W431.46±0.2025
    IkVWMPG 9010090.0±4.00.65±0.20<451.46±0.2025
    IkVWMPG 100100/120100.0±4.00.65±0.20<501.46±0.2025
    IkVWMPG 120150120.0±4.00.65±0.20W601.46±0.2025
    IkVWMPG 150180150.0+4.00.65+0.20W751.46±0.2025
    IkVWMPG 180MAX180.0±4.00.65±0.20<901.46±0.2025
    1kVWMPG210*MAX210.0±4.00.65±0.20W1051.46±0.2025
    IkVWMPG 230*MAX230.0±4.00.65±0.20W1151.46±0.2025
    IkVWMPG 250*MAX250.0±5.00.65±0.20W1251.46±0.2025
    IkVWMPG 300*MAX300.0±5.00.65±0.20W1501.46±0.2025

    Technical Data


    PropertyTest MethodStandard Value
    Tensile StrengthGB/T1040N8MPa
    Elongation at BreakGB/T10402300%
    Tensile Strength after AgingGB/T 1040, GB/T 7141N6.4MPa(130°C,168hrs)
    Elongation at Break after AgingGB/T 1040, GB/T 71415=100% (130°C,168 hrs)
    Hardness (Shore A)ISO 868W90
    Dielectric StrengthIEC 60243N25kV/mm
    Volume ResistivityIEC 60093slxio14Qcm
    Dielectric ConstantIEC 60250W3.0
    Longitudinal ShrinkageASTM-D-2671W10%
    EccentricityASTM-D-2671W30%(10kV); W50%(35kV)
    WaterAbsorptionISO 62W0.5%
    Flammability (Oxygen Index)ISO 4589"28
