    2.4mm Dual Wall Heat Shrink Tube PE , 3x Polyolefin Heat Shrink Tubing

    Ask Lasest Price
    Brand Name : Long
    Model Number : 3/32(2.4mm)
    Certification : ISO, ROHS
    Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability : 400000meter per day
    Delivery Time : 1-9days
    • Product Details
    • Company Profile

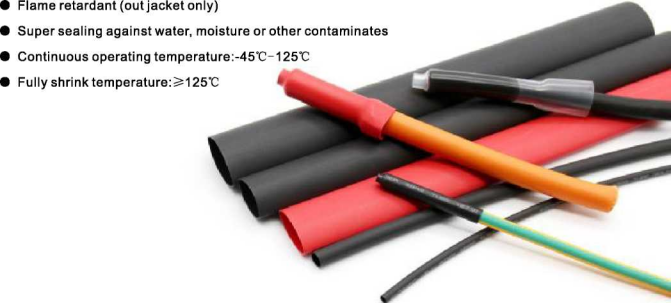

    2.4mm Dual Wall Heat Shrink Tube PE , 3x Polyolefin Heat Shrink Tubing

    3/32 2.4mm 3X PE Dual Wall Adhesive-Lined Heat-Shrink Polyolefin Tubing


    Adhesive lined heat shrink tubing with environmental sealing capability for a wide variety of electrical applications, including automotive and marine wire harness, wire splices, breakouts, and connector-to-cable transitions.

    Features

    • 3:1 shrink ratio

    • Low longitudinal shrinkage


    Demensions:


    InchmmInternal Diameter mmInternal Diameter mmTotal Wall Thickness mmAdhesive Thickness mmSpool Length M/spool
    3/322.42.40.80.80±0.300.40±0.20200
    1/83.23.21.00.90±0.300.40±0.20200
    3/164.84.81.61.05±0.300.40±0.20100
    1/46.46.42.21.25±0.300.45±0.20100
    5/167.97.92.71.35±0.300.50±0.20100
    3/89.59.53.21.45±0.300.50±0.2050
    1/212.712.74.21.65±0.300.50±0.201.22OR25M/Roll
    5/815155.21.80±0.300.55±0.301.22OR25M/Roll
    3/419.119.16.31.95±0.300.60±0.301.22OR25M/Roll
    125.425.48.52.00±0.400.60±0.301.22OR25M/Roll
    1-1/4303010.22.15±0.400.65±0.301.22OR25M/R0II
    1-1/2393913.52.45±0.400.60±0.301.22OR25M/Roll
    25050172.75±0.400.75±0.301.22OR25M/Roll
    5/26464213.05±0.400.80±0.301.22OR25M/Roll
    37575253.05+0.401.0510.401.22OR25M/Roll
    7/29090303.10±0.501.05±0.401.22OR25M/Roll
    4100100343.10±0.501.05±0.401.22OR25M/R0II
    5125125423.10±0.501.10±0.401.22OR25M/Roll

    Technical Data


    I PropertyTest MethodStandardTypical Performance I
    Tensile Strength(MPa)ASTM D2671W0.411.5
    Elongation(%)ASTM D2671M300450
    Tensile Strength after aging (MPa)UI224 158°CX168hrN7.38.5
    Elongation after aging(%)UI224 158°CX168hrN200350
    FlammabilityASTM D2671BSelf-extinguish within 30sSelf-extinguish within 30s
    Dieletric strength(kV/mm)IEC 60243N1517.5
    Volume resistivity(Q.cm)IEC 60093^1X10142.5X1014


    Hot Melt Adhesive Property


    PropertyTest MethodStantard I
    Water AbsorptionASTM D570<0.2%
    Sofening Point(°C)ASTM E2890±5
    Strength of pearing(PE)ASTM D 1000120N/25mm
    Strength of pearing(AL)ASTM D 100080N/25mm
