    12mm Dual Wall Heat Shrink Tube 4mm , Polylefin Adhesive Shrink Wrap Tubing

    Ask Lasest Price
    Brand Name : Long
    Model Number : SBRS-(4X)GR
    Certification : ISO
    Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability : 400000meters per day
    Delivery Time : 1-9days
    • Product Details
    • Company Profile

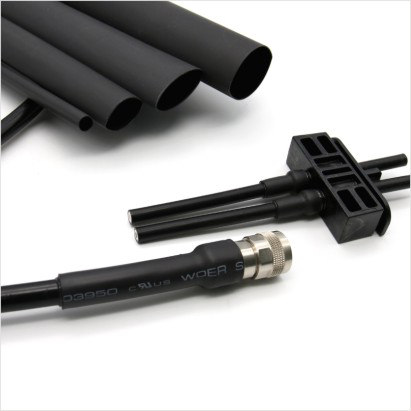

    12mm Dual Wall Heat Shrink Tube 4mm , Polylefin Adhesive Shrink Wrap Tubing

    2/13 4mm Black High Shrink Ration Dual Wall Adhesive Cross Polylefin Tubing​


    Adhesive Semi-rigid, dual wall heat shrink tubing designed to seal&

    environmentally protect splice in the most.


    Features

    4:1 shrink ratio

    Super sealing against water, moisture or other contaminates

    Continuous operating temperature:-45°C-125°C

    Fully shrink Temperature:^125°C

    Shrink ratio: 4:1

    Adhesive

    PropertyTest MethodStandard I
    Water AbsorptionASTM D570<0.2%
    Sofening Point(°C)ASTM E2890±5
    Strength of pearing(PE)ASTM D 1000120N/25mm

    Demension


    SizeExpandedAfter RecoveryStandard Package
    InchmmInternal DiameterInternal DiameterTotal Wall ThicknessAdhesive ThicknessSpool Length
    Min(mm)Max(mm)Nom(mm)Nom(mm)IVI/
    2/1344.00.951.40±0.300.60±0.20200
    1/466.01.271.70±0.300.80±0.20100
    5/1688.01.652.00±0.300.95±0.20100
    1010.02.002.30±0.401.10±0.201.22OR25M/Roll
    1/21212.02.412.45±0.401.20±0.201.22OR25M/Roll
    3/41818.04.452.60±0.401.34±0.301.22OR25M/Roll
    I PropertyTest MethodStandardTypical Performance I
    Tensile Strength(MPa)ASTM D2671N10.411.5
    Elongation(%)ASTM D2671>300450
    Tensile Strength after aging (MPa)UL224 158°CX168hr"7.38.5
    Elongation after aging(%)UI224 158°CX168hrN200350
    Dieletric strength(kV/mm)IEC 60243N1517.5
    Volume resistivity(Q.cm)IEC 60093^1X10142.5X1014
