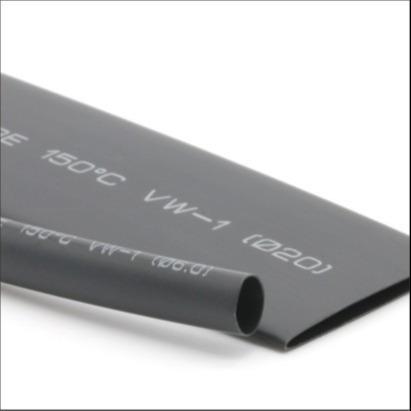

    6mm Heat Shrink Insulation Tube Singel Wall Black PE

    Ask Lasest Price
    Brand Name : Long
    Model Number : 6.0mm
    Certification : ISO
    Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability : 400000meters per day
    Delivery Time : 1-9days
    • Product Details
    • Company Profile

    6mm Heat Shrink Insulation Tube Singel Wall Black PE

    150℃ Flame Retardant Black PE Heat Shrink Tubing With Shrink Ratio 2X


    150°c Flame retardant heat shrink tubing


    Features


    2:1 shrink ratio

    Flame retardant

    Good resistance to common fluids and solvents

    UL approved

    Continuous operating temperature:-55°C ~150°C

    Fully shrink temperature:135°C

    RoHS compliant


    Dimensions

    SizeAs SuppliedAfter RecoveryStandard Package
    InchmmInternal Diameter mmInternal Diameter mmWall Thickness mmSpool Lenqth M/spooF
    3/641.0N1.20W0.600.41±0.10200
    1/161.55=1.60W0.800.43±0.10200
    3/322.5N2.40W1.200.51±0.10200
    1/83.0N3.20^1.600.5110.10200
    3/164.5^4.80<2.400.51±0.10100
    1/46.0N6.4.W3.200.64±0.10100
    3/89.0N9.50W4.800.64±0.10100
    1/2125=12.7<6.400.64±0.10100
    3/418N19.1W9.500.76±0.15100
    125N25.4W12.70.89±0.1550
    5/432N32W15.90.8910.1550
    3/238N38W19.11.00±0.1550
    250N51<25.41.15±0.1525
    375N76W38.11.27±0.2025
    4100N102W50.81.40±0.2025
    5120>125W63.51.40±0.2525

    Technical Data


    I PropertyTest MethodTypical Performance I
    Tensile strength(MPa)ASTM D26715=10.4
    Ultimate elongation(%)ASTM D2671>200
    Tensile strength after heat aged(Mpa)180°CX168hN7.3
    Ultimate elongation after heat aged (%)180°CX168h>100
    CorrosionUI224Pass
    FlammabilityASTM D 2671C methodVW-1
    Voltage withstand2500V, 60sNo breakdown
    Heat shock(%)250°CX4hNo cracks, flowing or dripping
    Cold blend-30°CX1 hNo cracks
    Dielectric strength (kv/mm)ASTM D 149N15
    Volume resistivity (Q-cm)ASTM D 876^1014
    Water absorption(%)UL224<0.5
