    35mm Insulated Heat Shrink Connectors 42mm Red Yellow Blue Waterproof Solder Wire

    Ask Lasest Price
    Brand Name : Long
    Model Number : SBRS
    Certification : ISO9001
    Price : 0.029
    Payment Terms : T/T, D/P, D/A, L/C, Western Union, MoneyGram
    Supply Ability : 400000pieces per day
    Delivery Time : 1-9days
    MOQ : 100Pieces
    • Product Details
    • Company Profile

    35mm Insulated Heat Shrink Connectors 42mm Red Yellow Blue Waterproof Solder Wire

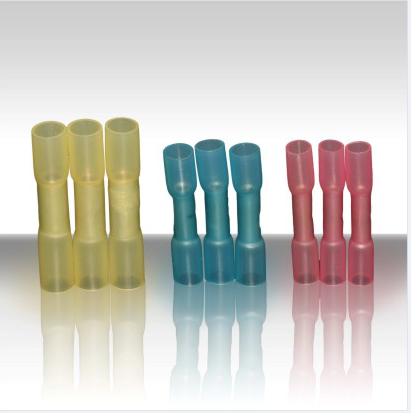

    Red Yellow Blue White Heat Shrink Connector Insulated And Waterproof Connector

    Heat Shrink Insulation Connectors


    Crystal clear, semi-rigid, adhesive lined tubing with integral solderless splice connector


    Features

    Exceptional clarity for visual confirmation of seal

    ● Seal& protects against water, corrosive compounds, moisture& contaminants

    ● Tough, durable heat shrink tubing resists abrasion, crimp tool damage& splitting

    ● Shrinks 40% faster than nylon, preventing.

    ● Inner adhesive bonds to plastics, rubbers & metals

    ● Meets& conforms to OEM wiring specifications for installation& repairs

    ● Continuous operating temperature:-45℃- 125℃

    ● Minimum shrinking temperature: 90℃



    Code

    SizeTube Diameter

    Color


    Standard Package

    AWGmm2Expanded Min(mm)Recovered Max(mm)Length (mm)
    SBRS-DZ-122-180.5-1.04.81.235.0red1000pc/bag
    SBRS-DZ-216-141.5-2.55.51.435.0blue1000pc/bag
    SBRS-DZ-312-104.0-6.06.51.542.0yellow500pc/bag
    Technical Data
    PropertyTest MethodStantardTypical Performance
    Tensile Strengtn(MPa)ASTM D2671≥1416
    Elongation(%)ASTM D2671≥300450
    Tensile Strengtn after aging (MPa)UL224 158℃X168hr≥7.315
    Elongation after aging(%)UL224 158℃X168hr≥200350
    Dieletric strength(kv/mm)IEC243≥1517.5
    Volume resistivity(Ω.cm)ASTM D876≥1X10142.5X1014

    Adhesive


    PropertyTest MethodStantard
    Water AbsorptionASTM D570≤0.2%
    Sofening Point(℃)ASTM E2890±5
    Strength of pearing(PE)ASTM D 1000120N/25mm
    Strength of pearing(AL)ASTM D 100080N/25mm
